3D Printing Stewy

Here are the settings I use for 3D Printing Stewy. I use Orca slicer with the default settings other than the ones I've listed below.

I encourage you to play around with these settings and material choices to find ways for improving Stewy. If you do print your own please let me know using the contact form!

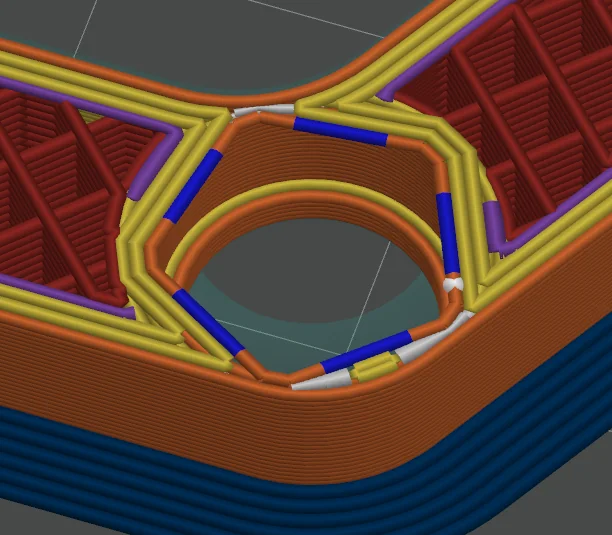

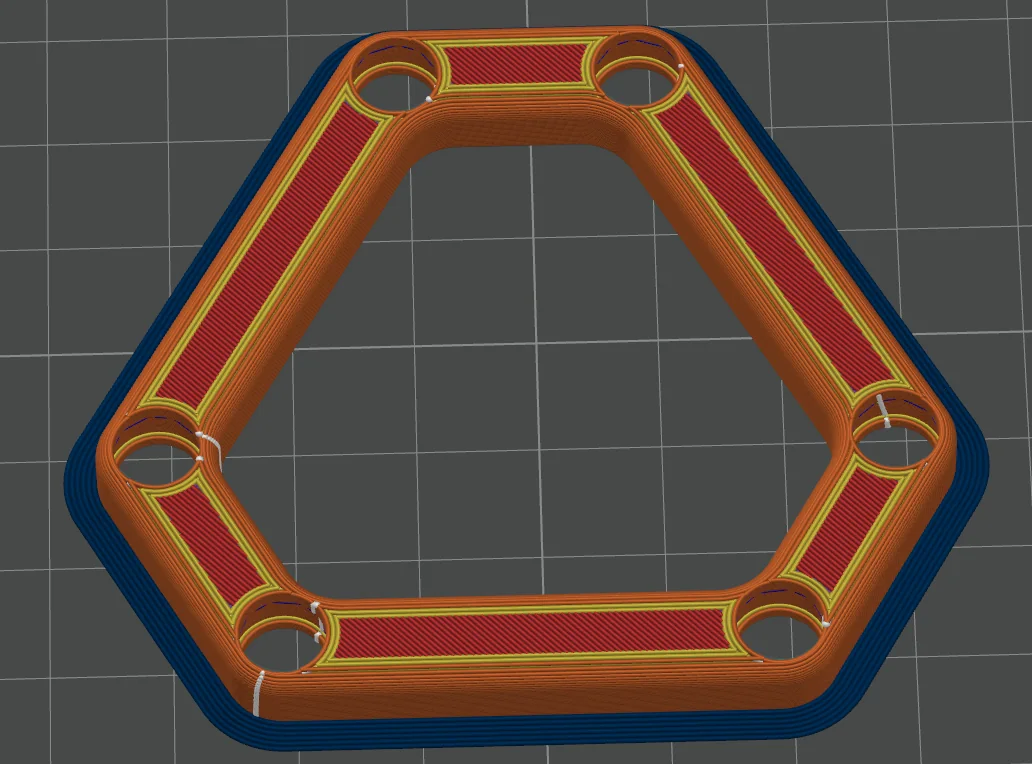

Top Plate

Slicer Settings:

Add a pause for inserting the 6 ball bearings mid print. This should be on layer 22 when using a .2 mm layer height.
Material: PETG
Layer height: 0.2 mm
0.4 mm Nozzle
Material: PETG
Wall Loops: 3
Infill Density: 20%
Do not enable support
Brim type: Outer brim only
Brim Width: 3 mm
brim-object gap: 0 mm
Elephant Foot Compensation: 0

Quantity: 1

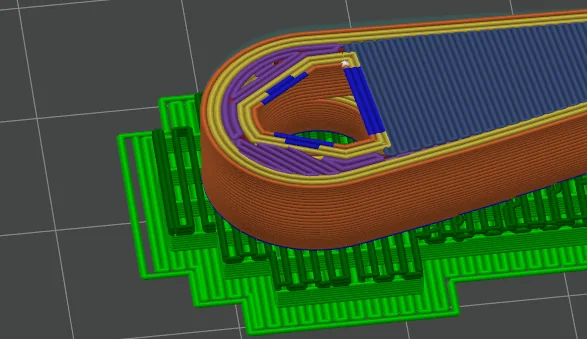

Arms

Slicer Settings:

Add a pause for inserting the servo horns mid print. This should be on layer 22 when using a .2 mm layer height.
Material: PLA
Layer height: 0.2 mm
0.4 mm Nozzle
Elephant Foot Compensation: 0
Wall Loops: 3
Infill Density: 20%
Enable support

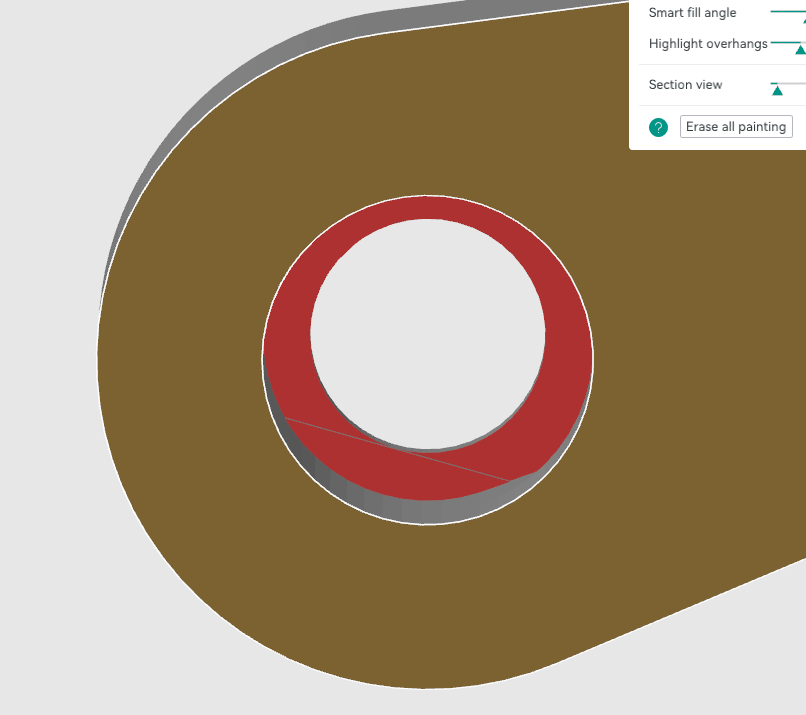

Use support painting to remove supports from the faces as shown in the image in this section
Support on build plate only
Brim type: Outer brim only
Brim Width: 3 mm
brim-object gap: 0 mm

Quantity:

3 left arms
3 right arms (mirror of left arm)

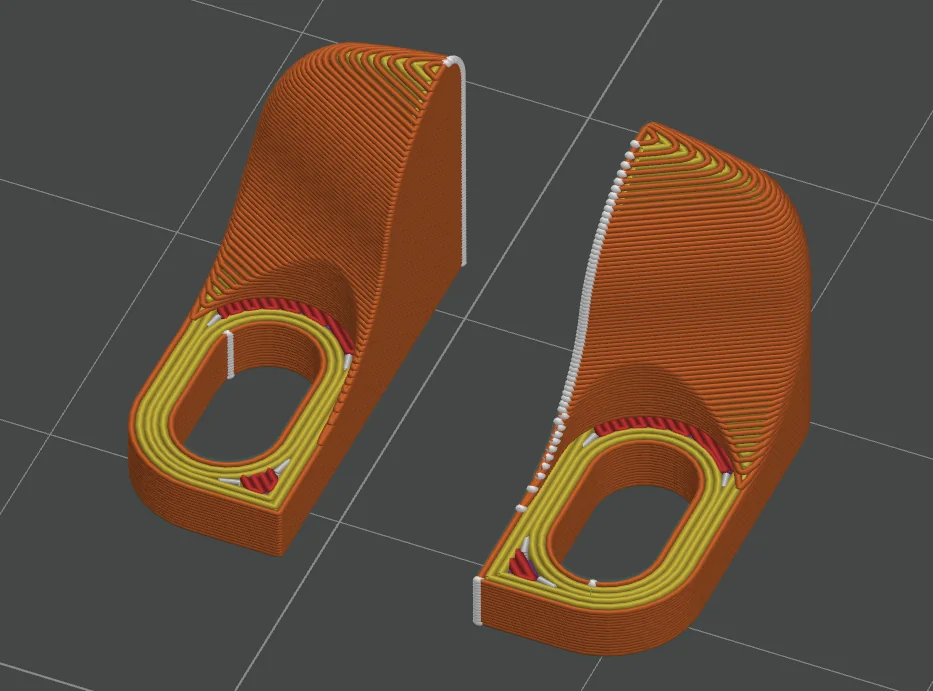

Distance Sensor Stops and Standoff

Quantity:

1 left stop
1 right stop
1 standoff

Slicer Settings:

Material: PETG
Layer height: 0.12 mm
0.25 mm Nozzle
Infill Density: 20%
No Supports

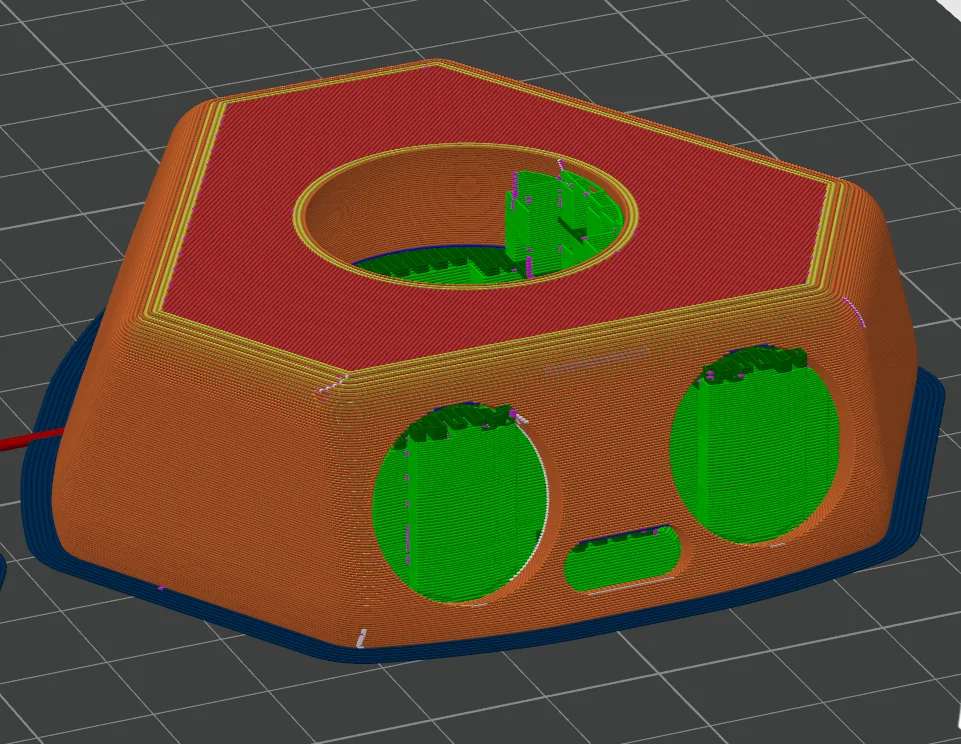

Head Top

Quantity: 1

Slicer Settings:

Material: PLA
Layer height: 0.2 mm
0.4 mm Nozzle
Wall Loops: 3
Infill Density: 20%
Enable support

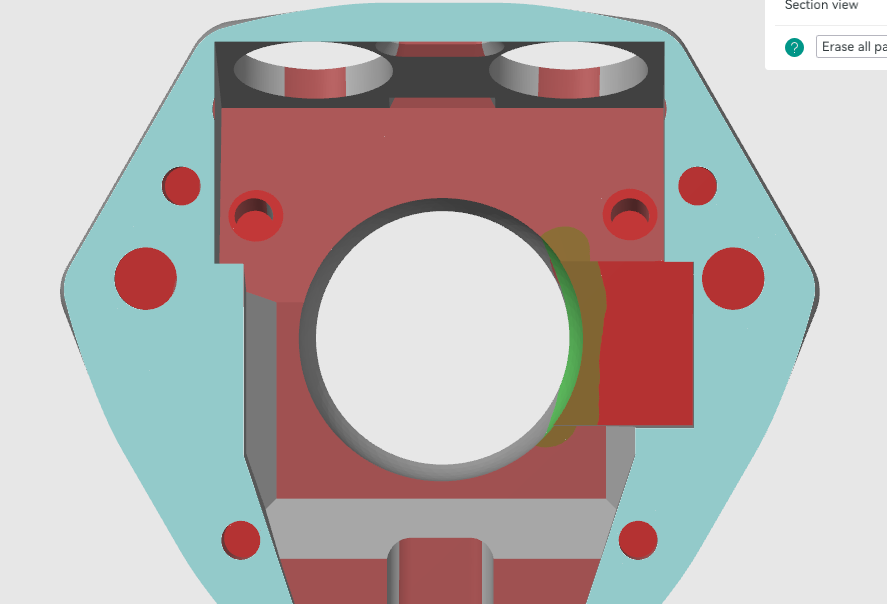

Use support painting to remove supports from the faces as shown in the image in this section
Support on build plate only
Elephant Foot Compensation: 0
Brim type: Outer and inner brim
Brim Width: 3 mm
brim-object gap: 0 mm
