Assemble Stewy

The complete build guide for putting Stewy together.

Before you start, make sure you:

have all the parts together, as listed on the hardware page
have the microcontrollers programmed, as shown in the programming guide

Download the guide as a PDF (15.7 MB)

Head

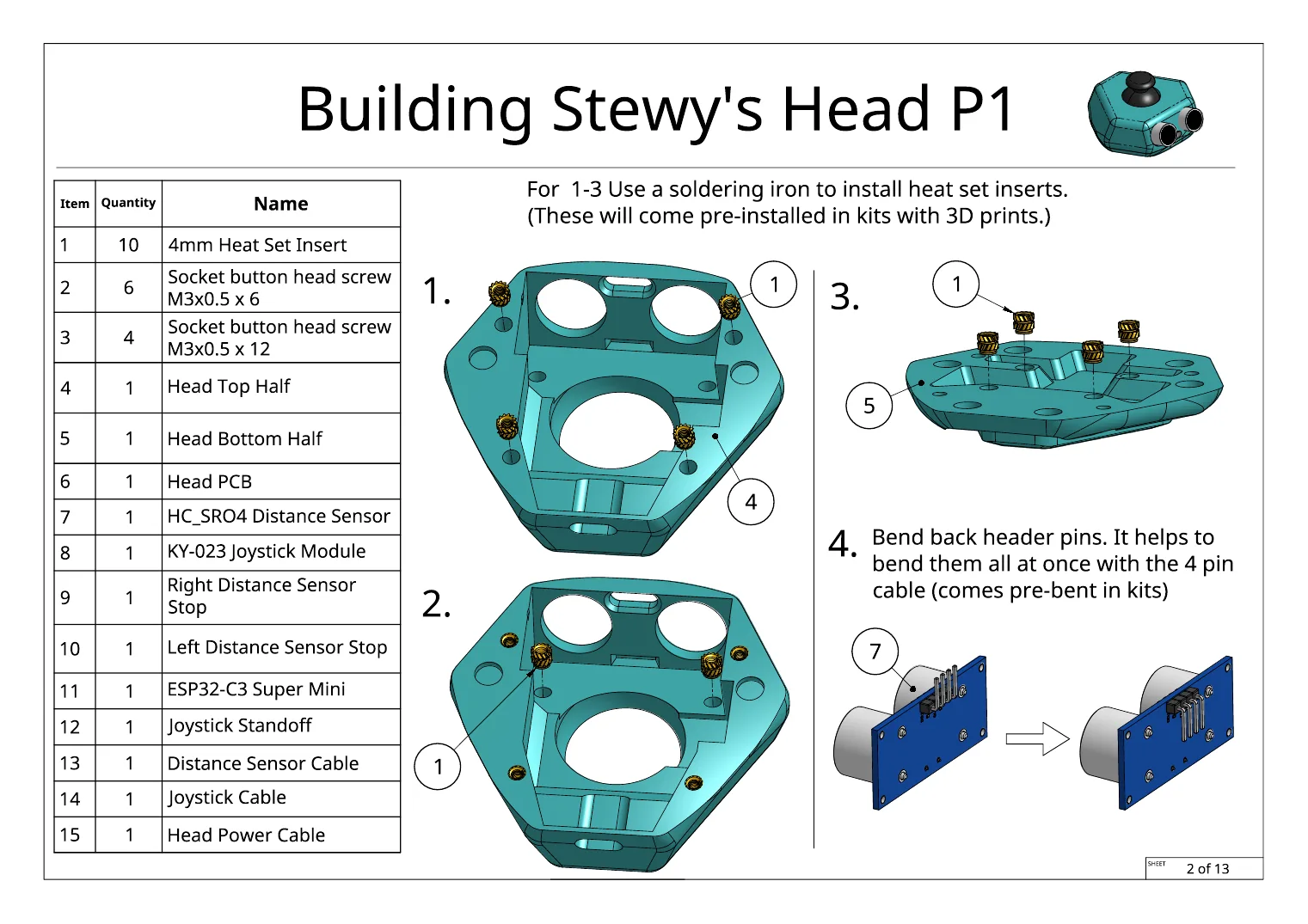

Build guide page 2 of 13: Head, part 1 — Page 2 of 13: Head, part 1. Tap or click the page to open it full size.

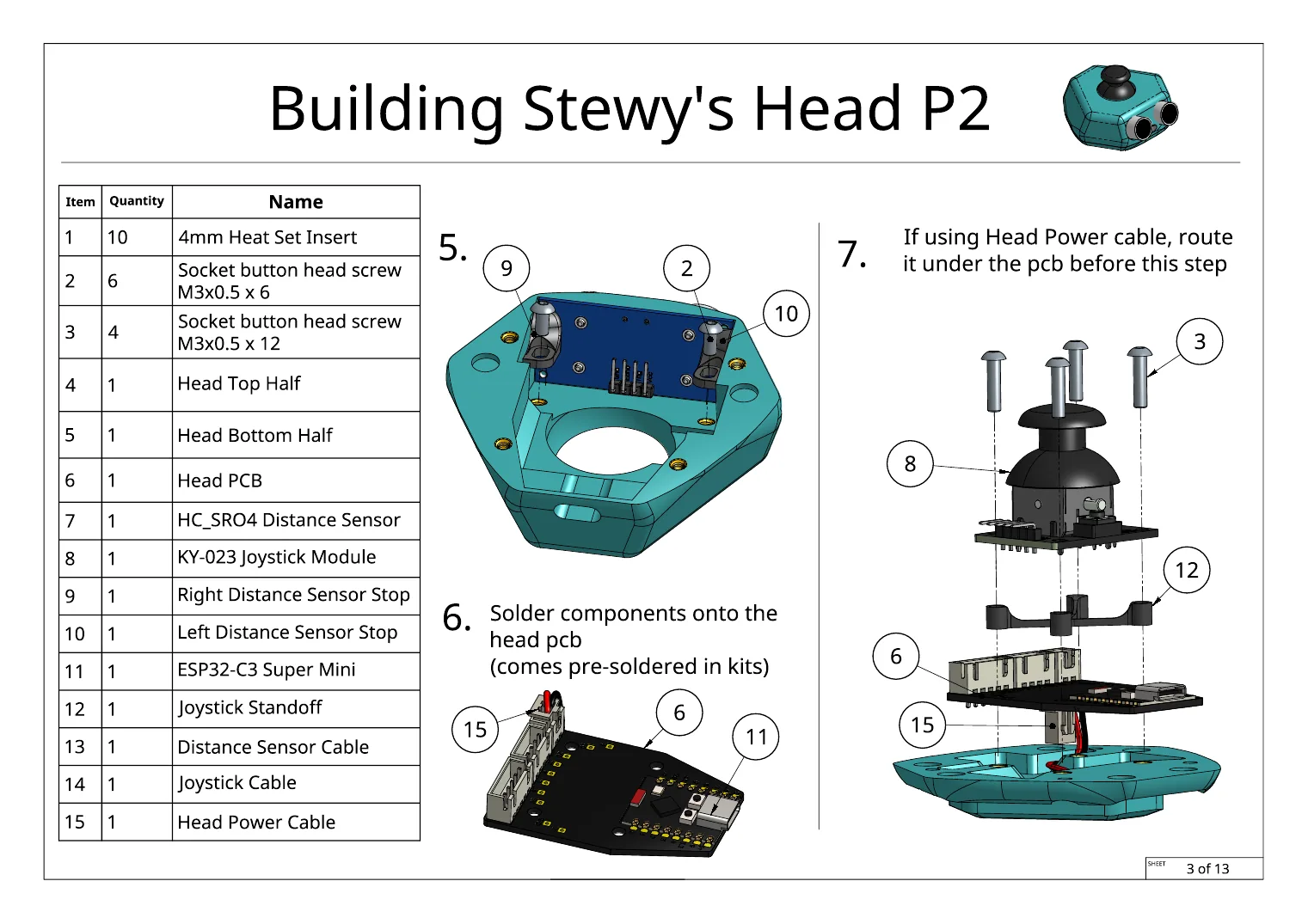

Build guide page 3 of 13: Head, part 2 — Page 3 of 13: Head, part 2. Tap or click the page to open it full size.

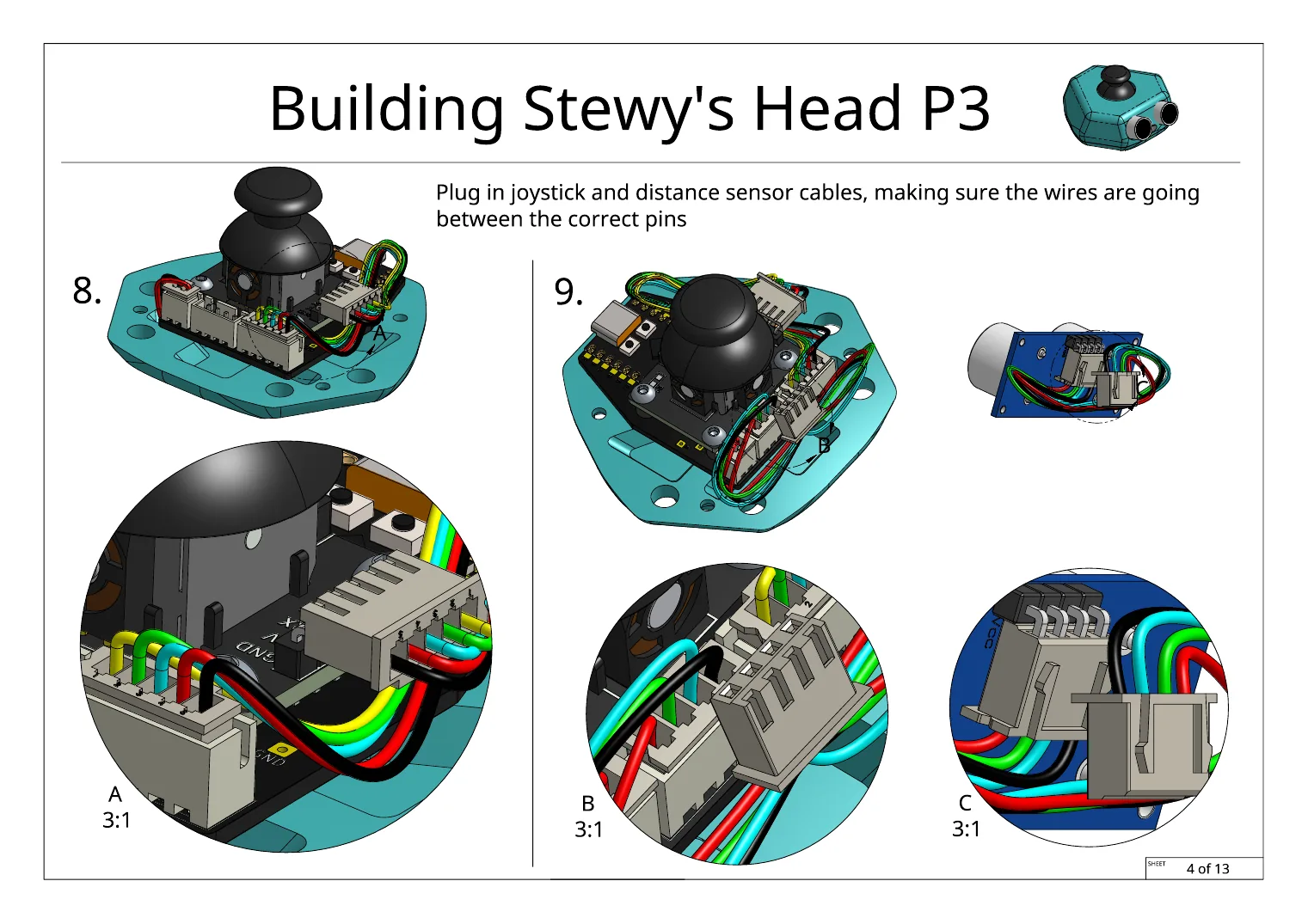

Build guide page 4 of 13: Head, part 3 — Page 4 of 13: Head, part 3. Tap or click the page to open it full size.

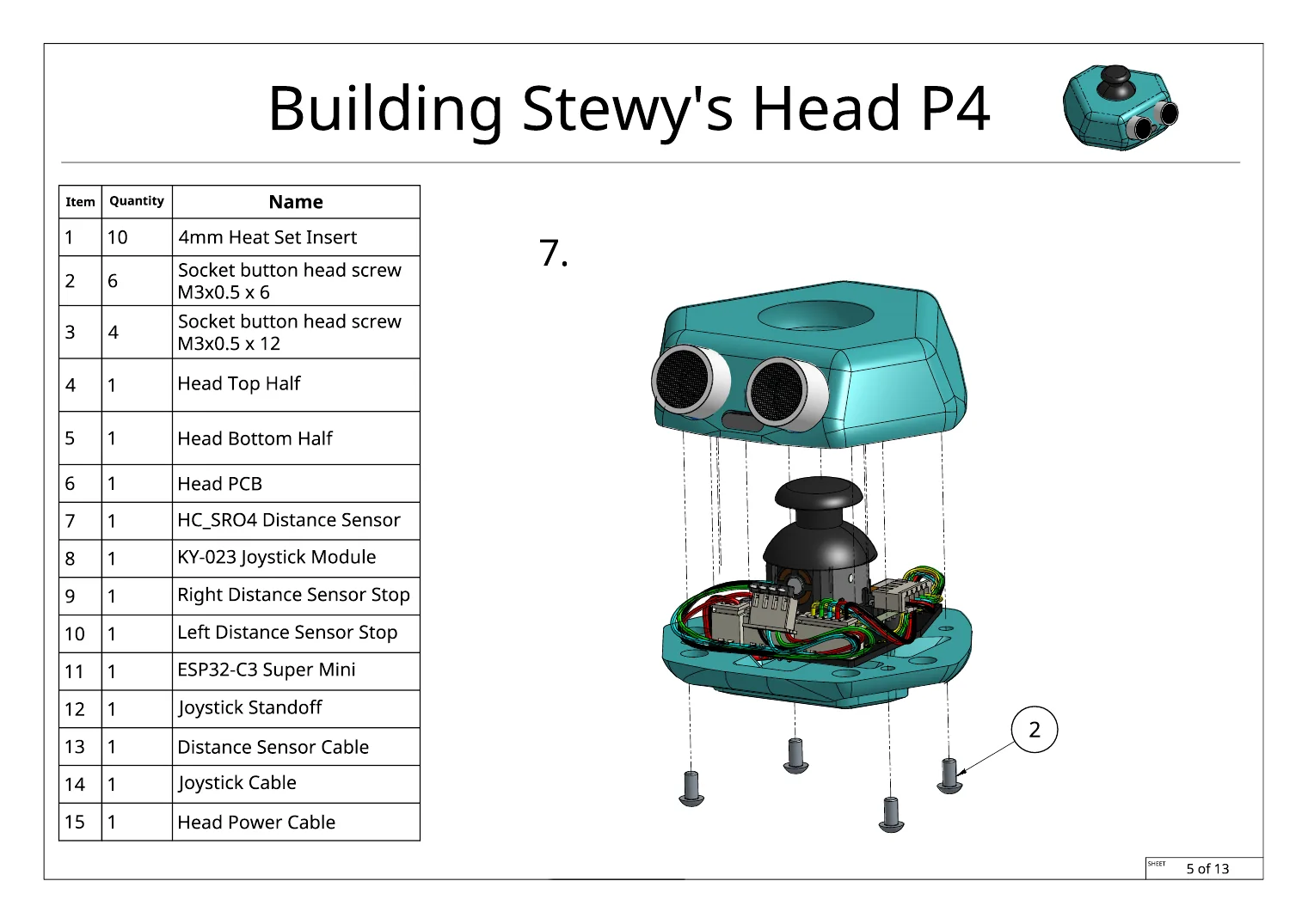

Build guide page 5 of 13: Head, part 4 — Page 5 of 13: Head, part 4. Tap or click the page to open it full size.

Arms

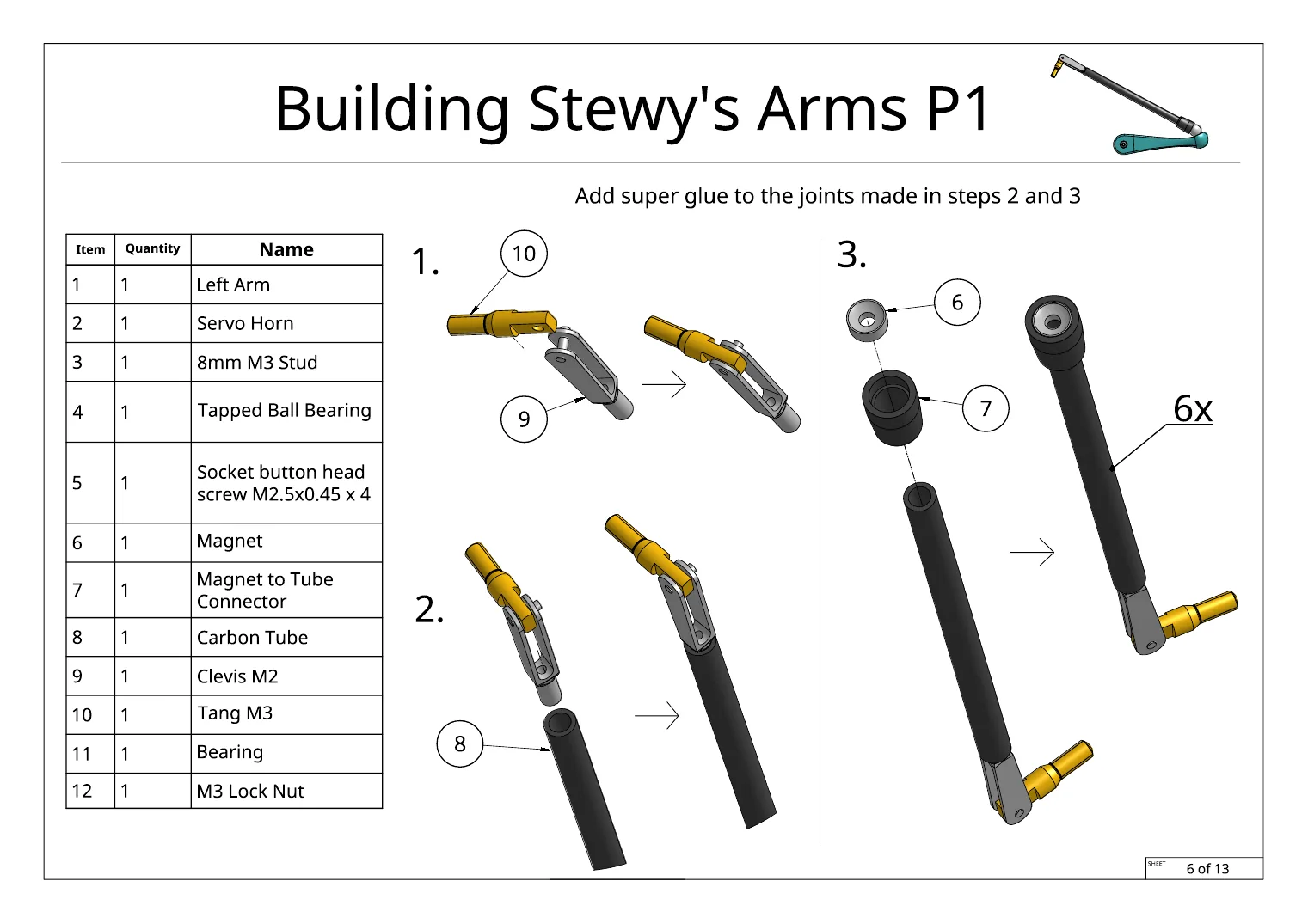

Build guide page 6 of 13: Arms, part 1 — Page 6 of 13: Arms, part 1. Tap or click the page to open it full size.

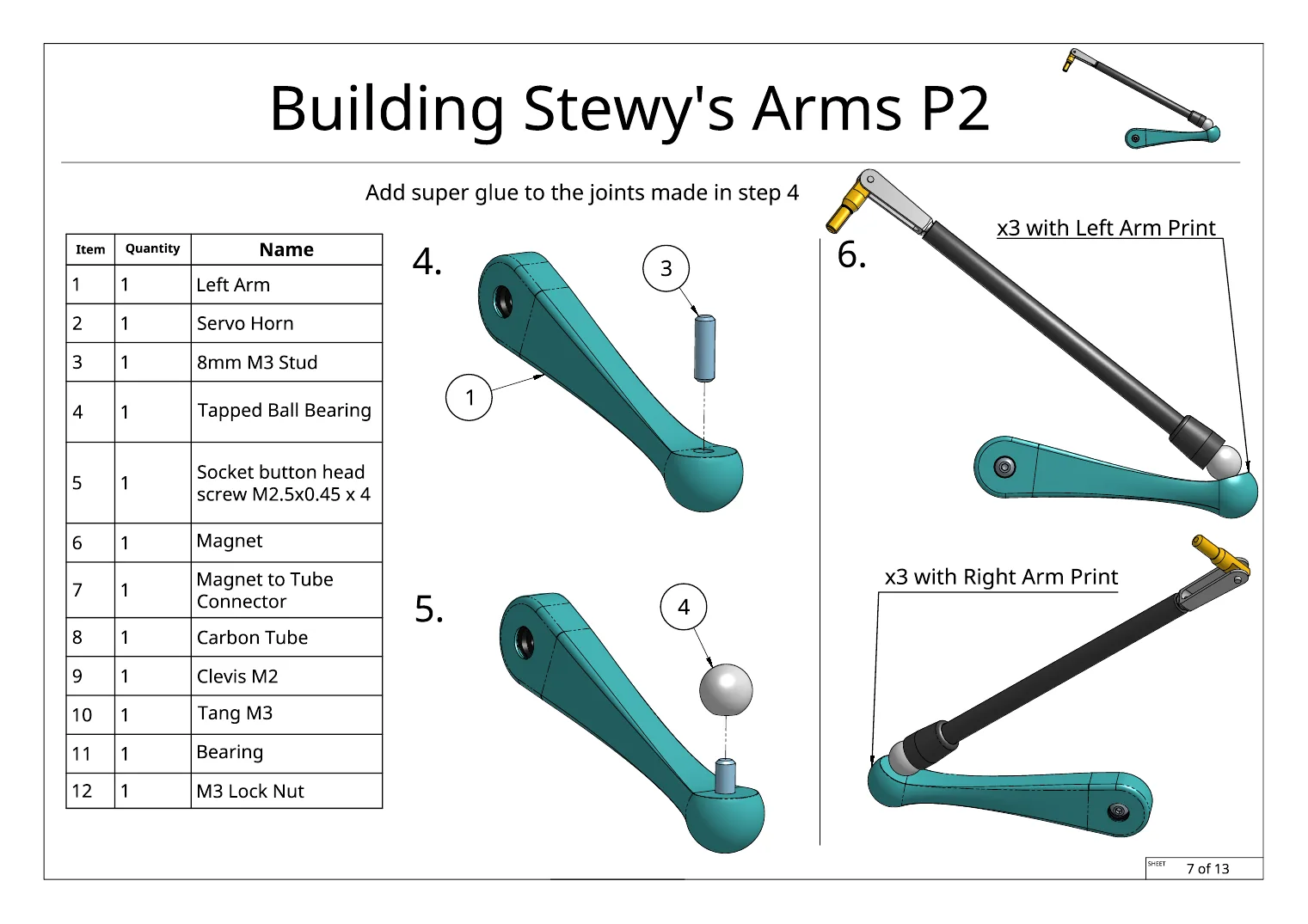

Build guide page 7 of 13: Arms, part 2 — Page 7 of 13: Arms, part 2. Tap or click the page to open it full size.

Top Plate

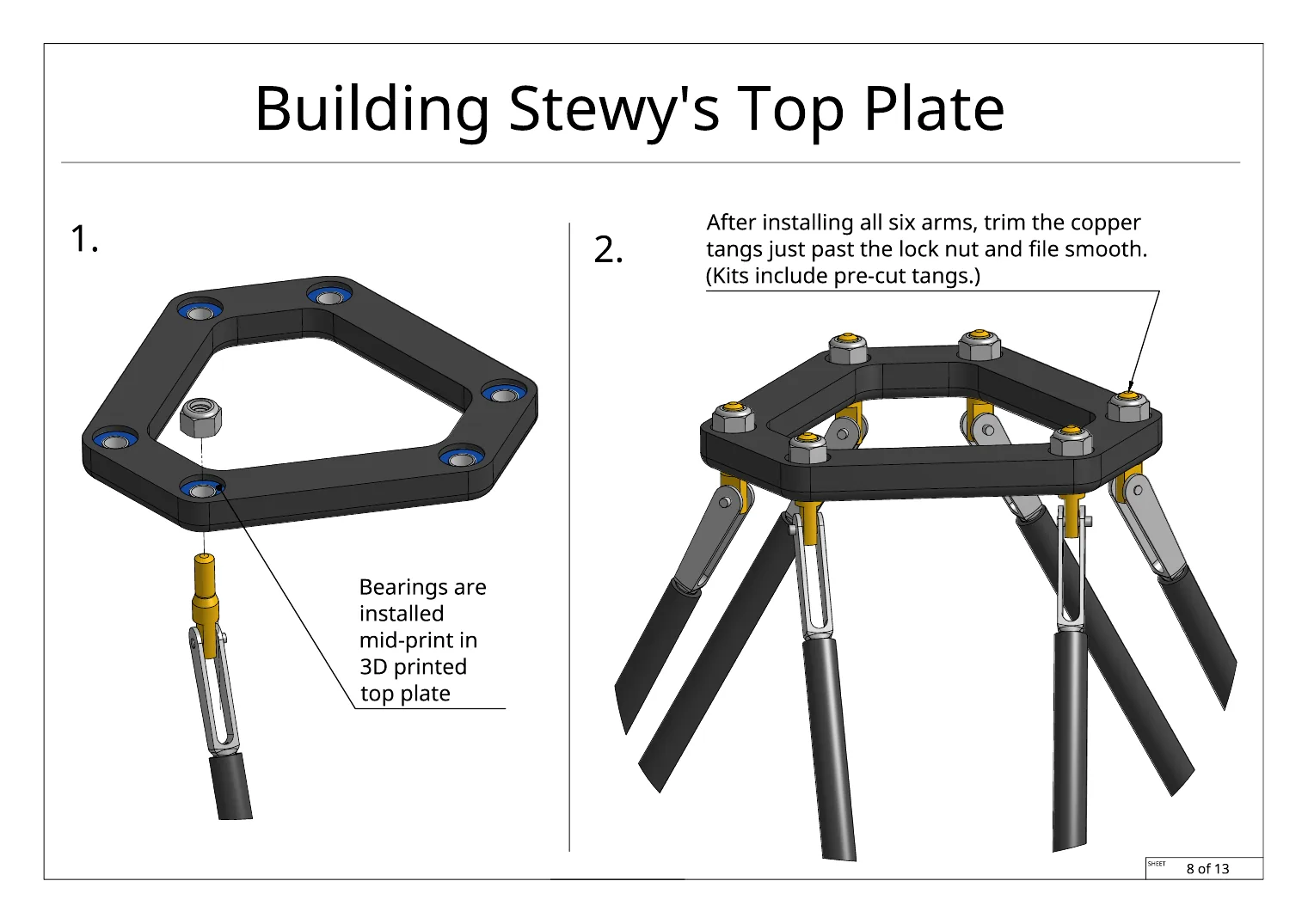

Build guide page 8 of 13: Top plate — Page 8 of 13: Top plate. Tap or click the page to open it full size.

Base

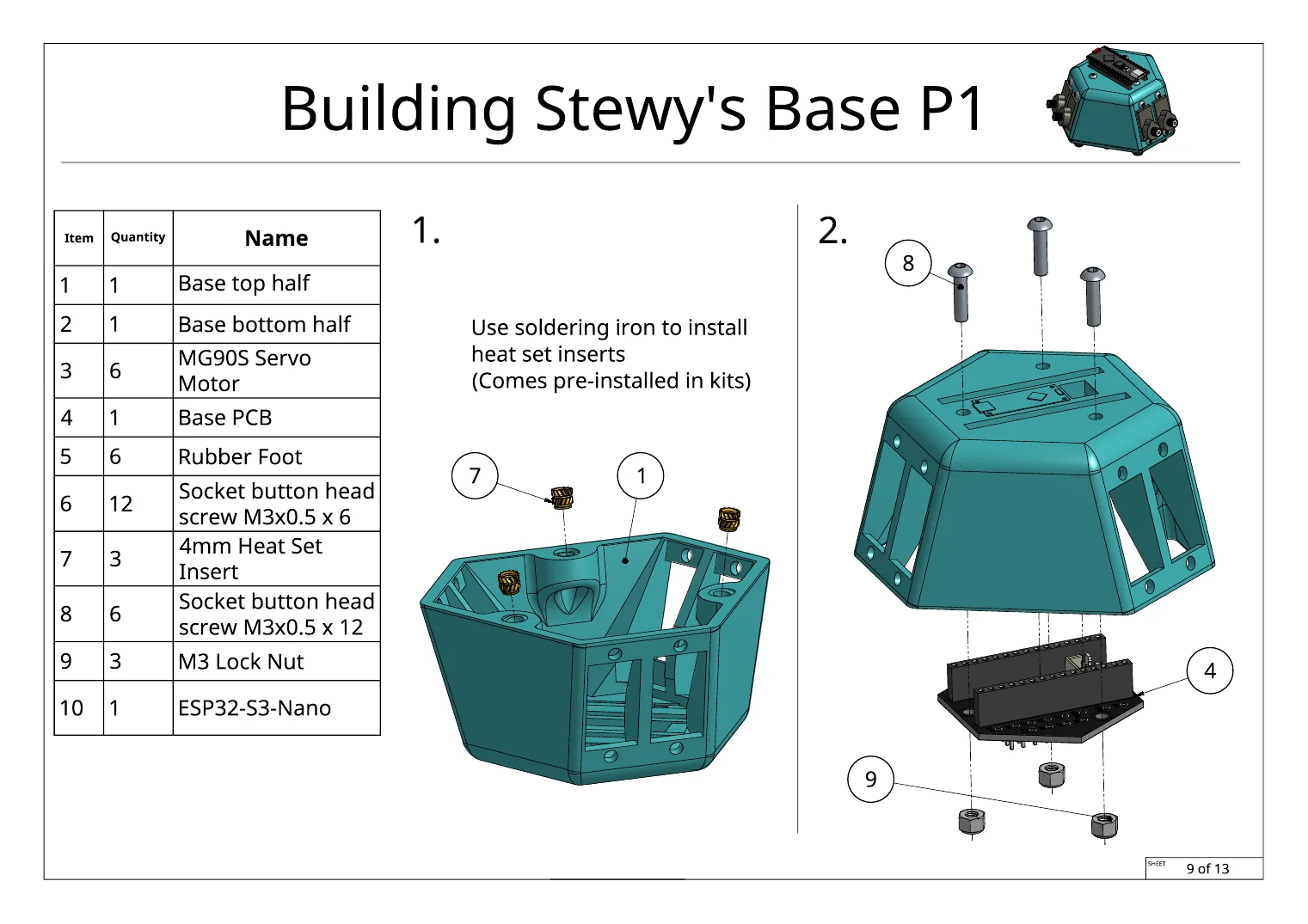

Build guide page 9 of 13: Base, part 1 — Page 9 of 13: Base, part 1. Tap or click the page to open it full size.

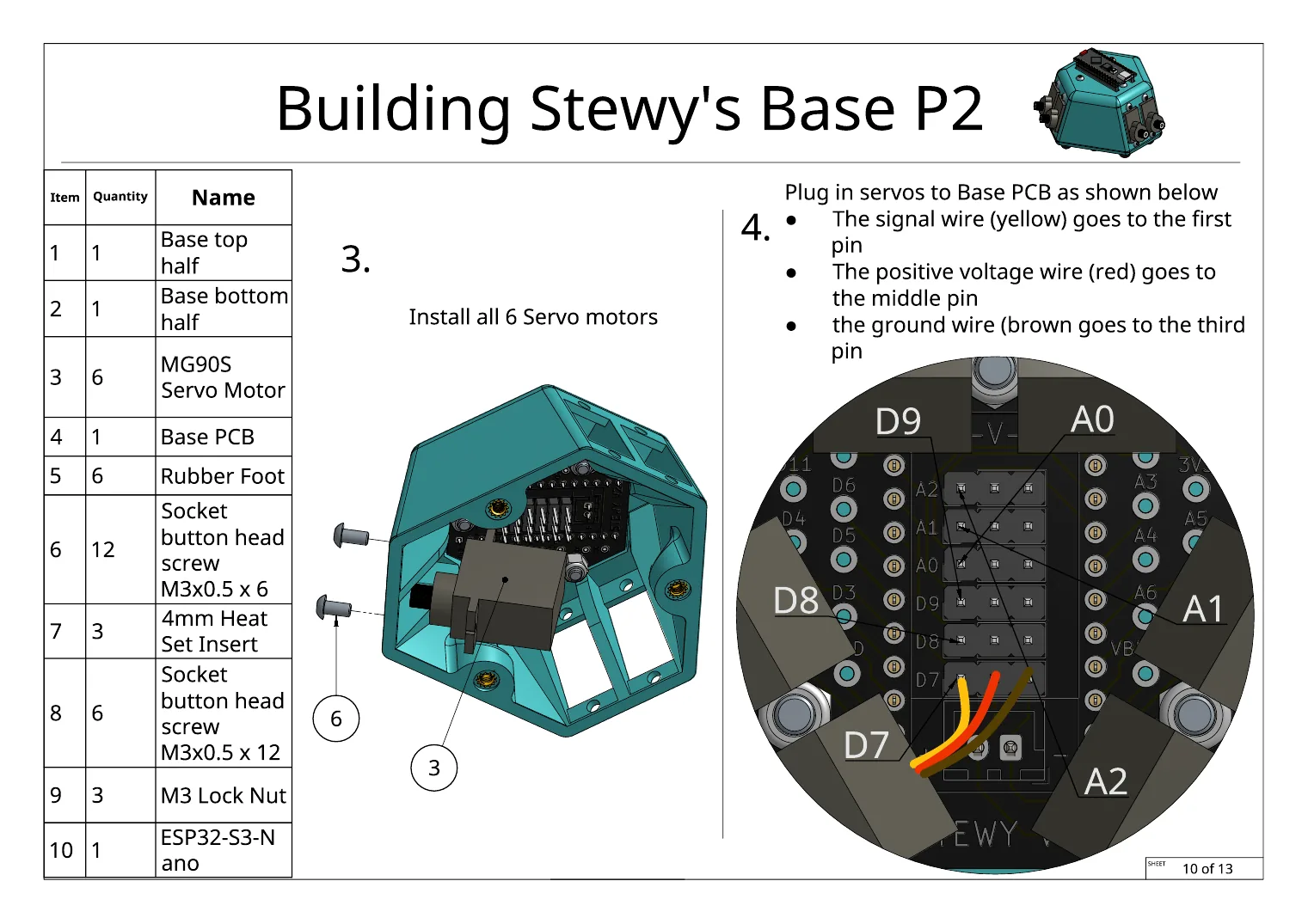

Build guide page 10 of 13: Base, part 2 — Page 10 of 13: Base, part 2. Tap or click the page to open it full size.

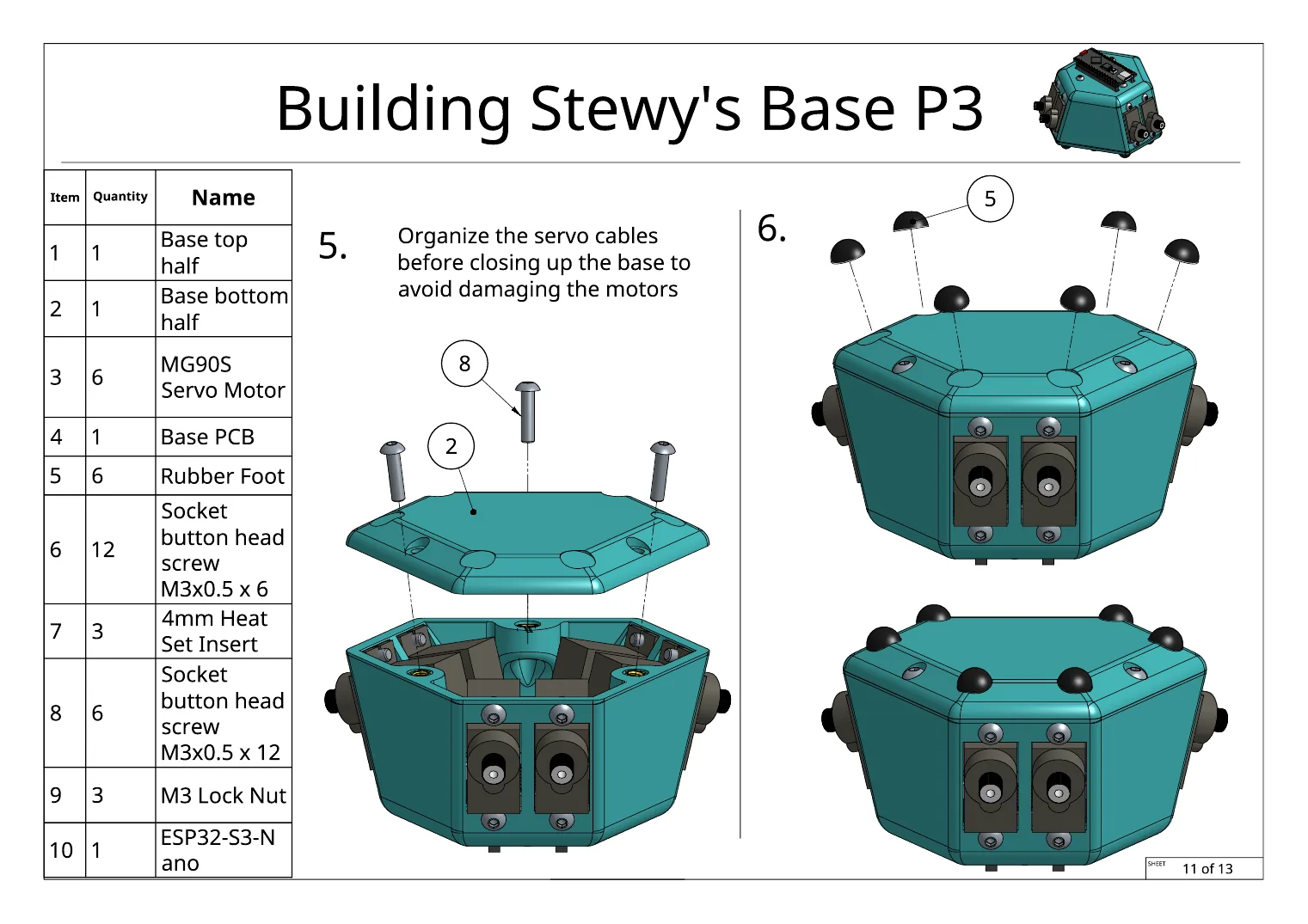

Build guide page 11 of 13: Base, part 3 — Page 11 of 13: Base, part 3. Tap or click the page to open it full size.

Final Steps

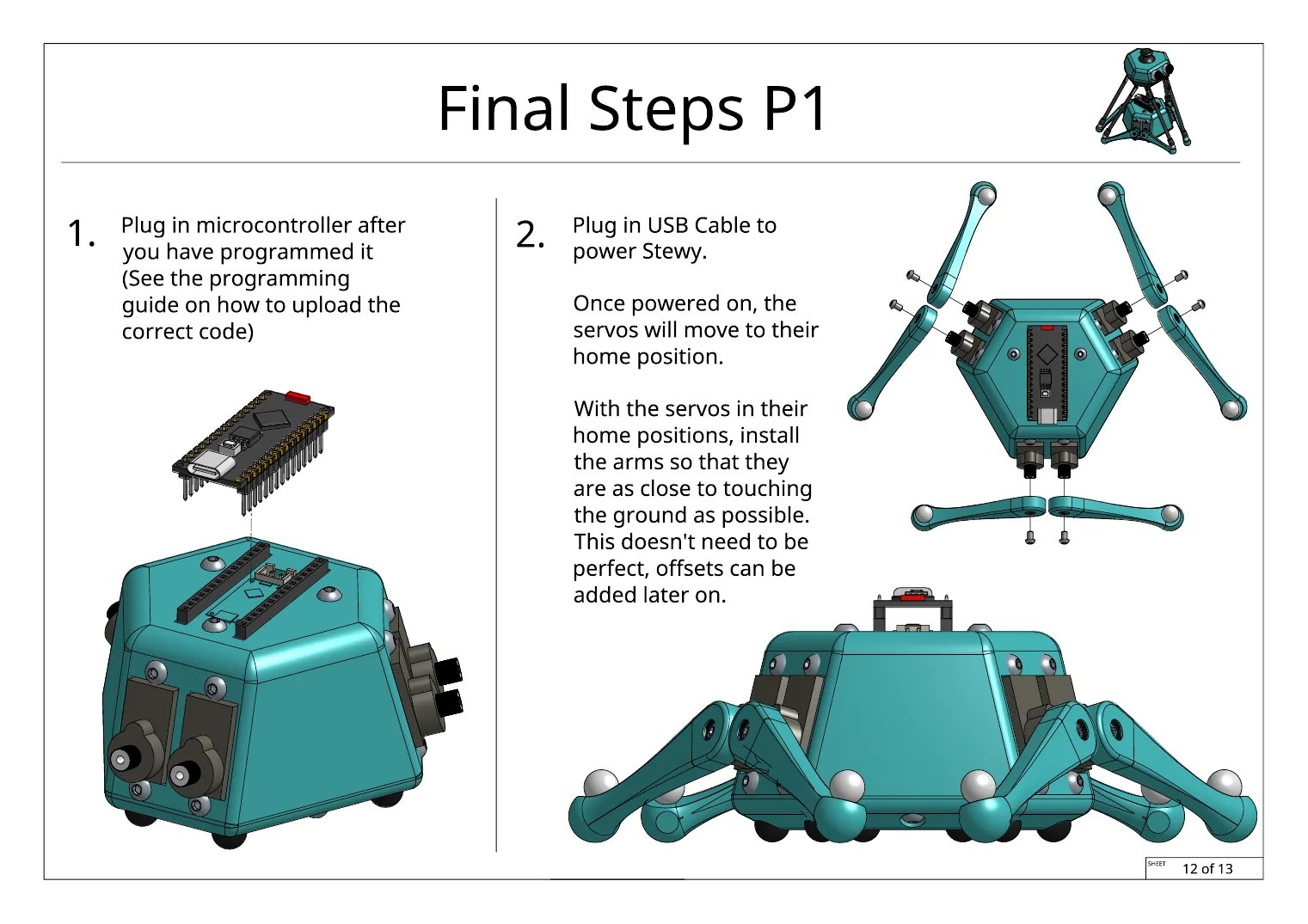

Build guide page 12 of 13: Final steps, part 1 — Page 12 of 13: Final steps, part 1. Tap or click the page to open it full size.

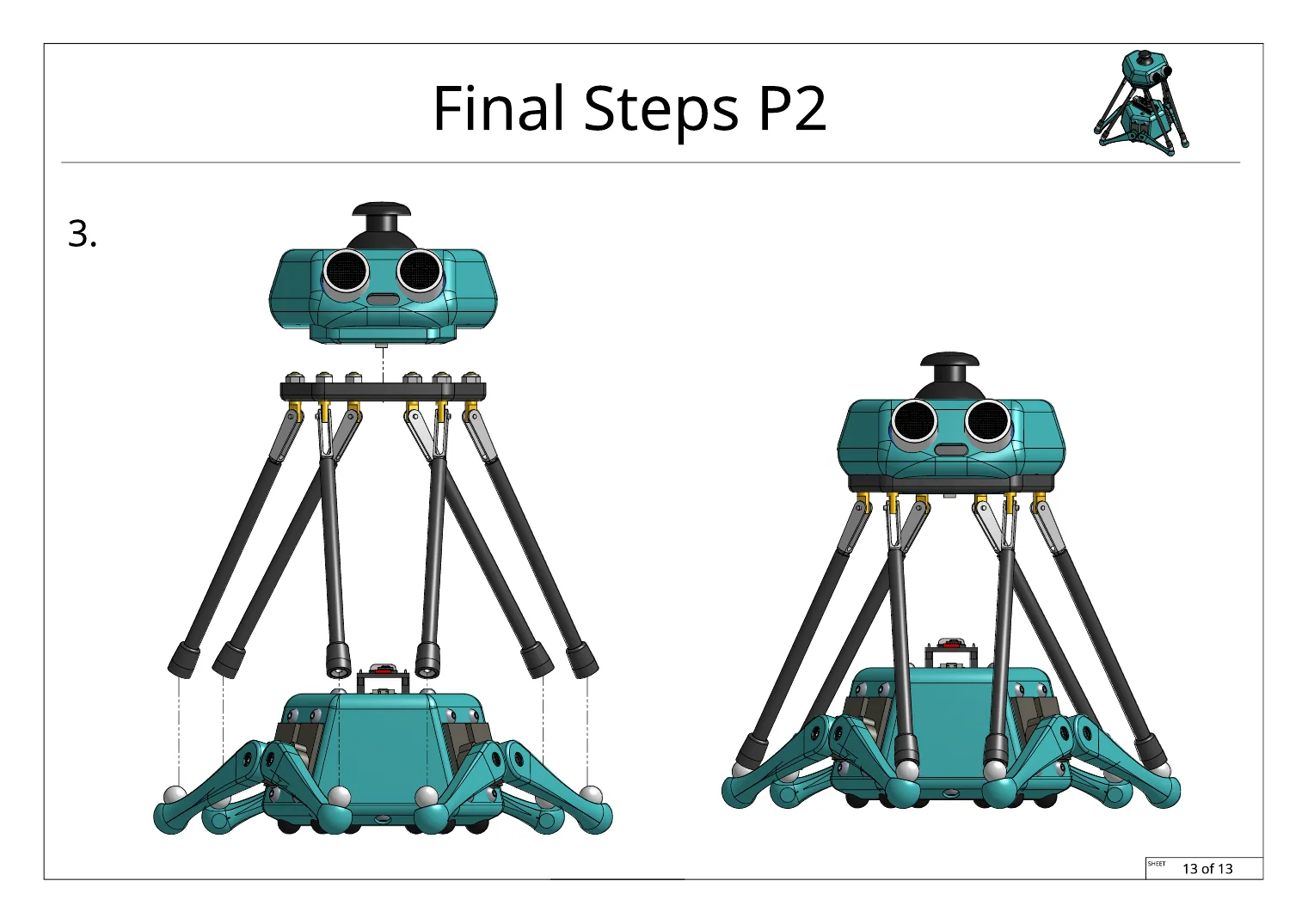

Build guide page 13 of 13: Final steps, part 2 — Page 13 of 13: Final steps, part 2. Tap or click the page to open it full size.
